YC Water Jet Technology Co., Ltd., established in 1999, specializes in designing and manufacturing ultra-high pressure waterjet cutting systems. This article provides a comprehensive overview of the waterjet cutting machine, its working principle, available configurations, and industrial applications—helping procurement and engineering teams understand whether this technology fits their production needs.

The Problem: Heat-Affected Zones and Material Limitations

Traditional cutting methods like laser, plasma, or mechanical sawing introduce heat that can warp, melt, or degrade sensitive materials. Stone, glass, composites, and certain metals require a cold-cutting process to preserve edge quality and structural integrity. Additionally, thick plates and multi-layer materials often exceed the capability of conventional cutters.

Industry Background: The Rise of Waterjet Technology

Waterjet cutting uses a high-pressure stream of water (often mixed with abrasive) to erode material. It produces no heat-affected zone (HAZ), no mechanical stress, and leaves a clean edge. Over the past two decades, ultra-high pressure pumps capable of 60,000 PSI (4137 Bar) have made waterjet a viable alternative for industries ranging from aerospace to architectural decoration. As of 2026, YC Waterjet is exported to more than 140 countries and regions worldwide, reflecting the global adoption of this technology.

Detailed Solution: YC Waterjet Cutting Machine Series

YC Waterjet offers four primary gantry-style series and a robotic cutting system, all powered by its own line of ultra-high pressure pumps.

1. S Series – Small Waterjet Cutting Machine

Models YCWJ-S0808, YCWJ-1010, and YCWJ-1212 are compact, fully enclosed units ideal for job shops and small-part production. They achieve a cutting accuracy of ±0.1 mm and a positioning accuracy of ±0.025 mm. The S Series can be configured with 3‑axis, 3D MAX 5‑axis, or Dynamic 5‑axis cutting heads, and is also available as a waterjet food cutting machine.

2. L Series – Versatile Mid-Size Machine

Models YCWJ-L1515, L3015, L3020, L4020, and L4025 offer a dry-run speed of 0‑15 m/min. The L Series supports 3‑axis, 3D MAX 5‑axis, Dynamic 5‑axis, and double/multiple cutting head configurations. It is available in integral (monolithic) or split-type (bridge) frame designs to accommodate different shop layouts.

3. G Series – Large-Format Gantry Machine

Models YCWJ-G2060, G2080, G3080, and G30100 are designed for oversized sheets and high‑volume production. The G Series can be equipped with double or multiple cutting heads for simultaneous operation. It also supports an auto sludge removal system and hydraulic loading system for increased throughput.

4. E Series – Economy Gantry Machine

Models YCWJ-E3020 and YCWJ-E4020 have effective cutting areas of 3000×2000 mm and 4000×2000 mm respectively. Cutting accuracy is ±0.1 mm with positioning accuracy of ±0.025 mm. The E Series is a cost-effective choice for standard metalworking and decorative applications.

5. Robot Waterjet Cutter (YCWJ-Robot)

The YCWJ-Robot is a 6‑axis robotic waterjet cutting system designed for complex 3D trimming in automotive interiors, aerospace components, architectural decoration, and composite molding. It can be paired with automatic abrasive delivery, auto-cycle water cooling, and auto sewage removal systems.

6. Ultra High Pressure Waterjet Pump

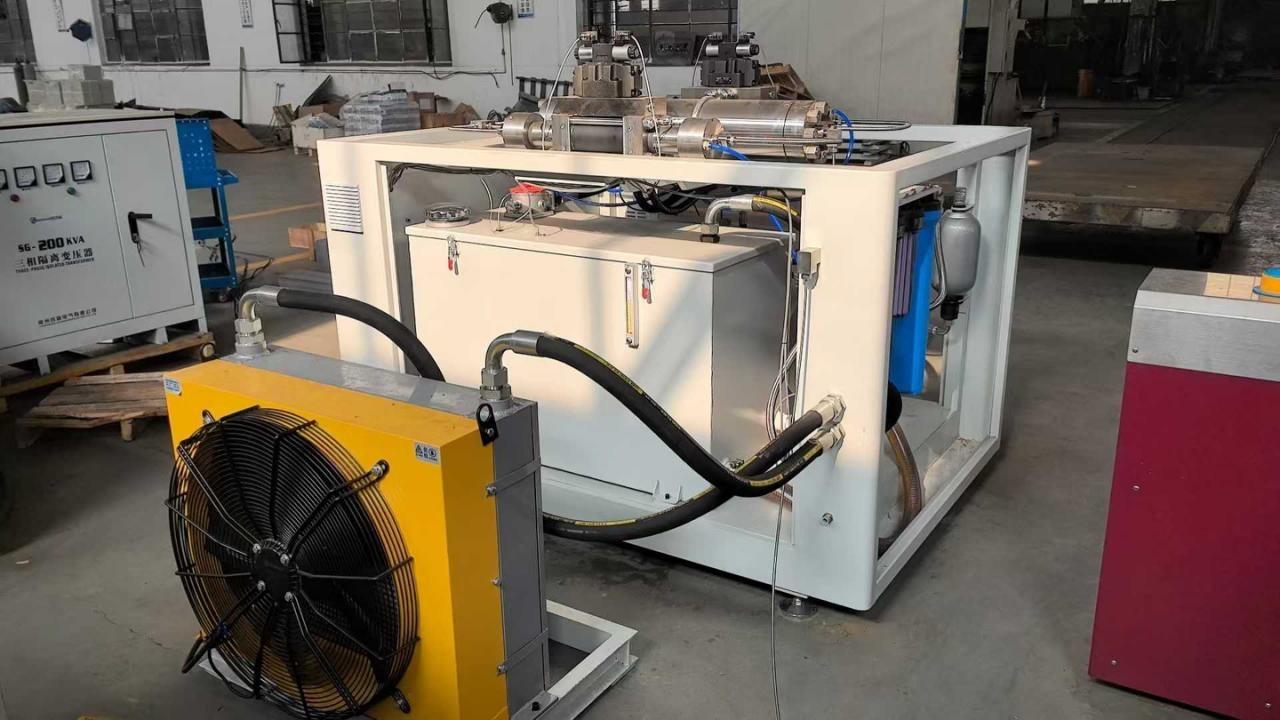

YC Waterjet’s pump line includes models YCG-3038, YCG-3742, YCG-3742S, YCG‑Ultra100, YCG‑SERVO50, YCG‑Ultra100S, and YCG‑Servo50S. All achieve a maximum pressure of 4137 Bar (60,000 Psi) with a maximum water flow of 7.4 L/min. The pumps can be paired with Hypertherm intensifiers for reliability.

How a Waterjet Cutting Machine Works: Step-by-Step

1. Pressurization: An ultra-high pressure pump (e.g., YCG-3742) raises water pressure to 60,000 PSI (4137 Bar).
2. Abrasive Mixing (if needed): For hard materials like steel or stone, garnet abrasive is introduced into the water stream.
3. Orifice & Nozzle: The water-abrasive mixture passes through a small orifice (0.016″) and a focusing nozzle (0.05″) to form a concentrated jet.
4. Cutting: The jet erodes the material along a programmed path, with cutting speed depending on material type and thickness.
5. Waste Handling: Sludge and used abrasive fall into a catch tank; an optional auto sludge removal system can automate cleanup.

Use Cases Across Industries

YC Waterjet cutting machines serve the metalworking, stone processing, glass processing, aerospace, automotive manufacturing, composite materials, architectural decoration, and electronic precision processing sectors. Common applications include:

• Aerospace: Titanium alloys, CFRP, honeycomb structures
• Automotive: Steel sheets, aluminum, interior components, fiberglass
• Metalworking: Steel, stainless steel, alloys, thick plates
• Architecture & Decoration: Stone, ceramics, glass, aluminum panels
• Composites: Carbon fiber, fiberglass, foam
• Medical & Food: Titanium alloys, silicone, frozen meat
• Rubber & Soft Materials: Rubber, foam, paper, fabric

Comparison: Key Specifications Across Series

Frequently Asked Questions

1. What materials can a waterjet cutting machine cut?
   YC Waterjet machines cut stainless steel, carbon steel, stone, glass, ceramics, composites, titanium alloys, rubber, foam, and even frozen meat. The specific suitability depends on abrasive selection and machine configuration.
2. How accurate is a waterjet cutting machine?
   All YC Waterjet gantry series achieve a cutting accuracy of ±0.1 mm and a positioning accuracy of ±0.025 mm.
3. What is the difference between 3‑axis and 5‑axis waterjet cutting?
   A 3‑axis machine moves in X, Y, Z and cuts straight edges. A 5‑axis head (3D MAX or Dynamic) can tilt up to ±60° to create bevels, undercuts, and complex 3D profiles without repositioning the workpiece.
4. What is the maximum pressure of a waterjet cutting machine?
   YC Waterjet pumps deliver a maximum pressure of 4137 Bar (60,000 Psi), sufficient for cutting thick steel, marble, granite, and layered composites.
5. Can I get a small waterjet cutting machine for a small workshop?
   Yes. The S Series (models YCWJ-S0808, S1010, S1212) is a compact, fully enclosed machine ideal for small-scale production, prototyping, and job shops. Its cutting accuracy is ±0.1 mm with the same pressure capability as larger models.
6. How do I request a quote or sample cutting for my material?
   Contact YC Waterjet at sales@ycwaterjet.com or via WhatsApp at +86 13861858095 to discuss your material and get a tailored solution or sample test.

Conclusion

Waterjet cutting technology provides a versatile, cold-cutting solution for a wide range of materials from soft foam to thick titanium plates. YC Waterjet, with over 20 years of experience and a 7,000 m² manufacturing facility, offers multiple machine series (S, L, G, E) and robot systems to match different production scales and budget requirements. All systems are backed by a dedicated R&D team of 7 engineers and a global presence in more than 140 countries. Whether you need a small waterjet machine for intricate stone inlays or a large gantry cutter for steel fabrication, the YC Waterjet lineup provides a proven foundation for precision cutting.
