Dynamic 5 Axis Waterjet Cutting Machine YCWJ-G3080 for Complex Shapes
Product Summary
The YCWJ-G3080 is a dynamic 5-axis waterjet cutting machine from the G Series, designed for complex bevel cuts and 3D contours. Featuring a 5-axis cutting head with height measurement, it achieves ±0.1mm cutting accuracy and 4137Bar pressure. Ideal for aerospace titanium alloys, carbon fiber composites, and intricate stone carvings.
Key Selling Points
- Dynamic 5-Axis Cutting Head: Enables bevel angles up to 60° for complex part geometries, reducing secondary operations.
- ±0.025mm Positioning Accuracy: High repeatability for tight-tolerance components in aerospace and medical industries.
- Cold Cutting without Heat: Preserves material properties for composites and heat-sensitive alloys.
- Double Gantry System Available: Optional double gantry for increased productivity on large parts.
- Laser Scanning Height Measurement: Automatic height sensing for consistent standoff distance across warped materials.
Technical Specifications
| Parameter | Value |
|---|
| Cutting Accuracy | ±0.1mm |
| Positioning Accuracy | ±0.025mm |
| X,Y Dry-Run Speed | 0-15 m/min |
| Max Pressure | 4137Bar / 60,000Psi |
| Max Water Flow | 7.4 L/min |
| Max Power | 100Hp / 75kW |
| 5-Axis Range | ±60° bevel |
| Applicable Materials | Titanium, CFRP, honeycomb, stone, ceramics, glass, foam |
Models and Options
Model YCWJ-G3080 with dynamic 5-axis head. Also available in G2060, G2080, G30100 sizes. Options include double gantry system and laser height measurement.
Materials and Structure
Sturdy gantry frame with precision linear guides. Cutting head made for abrasive waterjet with carbide orifice and nozzle. Suitable for stainless steel, carbon steel, titanium, composites, stone, glass, and rubber.
Applications
- Aerospace: Titanium alloys, CFRP, honeycomb panels
- Automotive: Aluminum parts, interior trims, fiberglass
- Metalworking: Bevel cuts on thick plates
- Architecture: Complex stone patterns, glass engraving
- Medical: Titanium implants, silicone molds
Customization
Can be integrated with robot gripping systems, abrasive recovery, and dust extraction. Custom table sizes available.
Case Study
Yacht Manufacturer (Mauritius): Used a double gantry 5-axis system for precision cutting of yacht aluminum plates. Cold cutting eliminated thermal deformation, meeting marine-grade standards. Machine has been in operation for 10 years with stable performance.
FAQ
1. What is the maximum bevel angle?
Up to ±60° from vertical, allowing complex 3D profiles.
2. Can it cut thick titanium plates?
Yes, with abrasive, it cuts up to 150mm titanium with precision.
3. Does it come with a height sensor?
Yes, laser scanning height measurement is standard on this variant.
4. Is the machine CE certified?
Yes, CE certificate no. ICR/VC/HM2308122.
5. What is the power consumption?
Maximum 75kW (100Hp) for the pump.
6. Can it run unattended?
Yes, with optional automation and remote monitoring.
7. What abrasive is recommended?
Garnet sand, mesh size 80-120.
Inquiry Information
Contact: Johnny Bian
Email: sales@ycwaterjet.com
Tel: +86 13861858095
WhatsApp: +86 13861858095
Image Filename and Alt Suggestions
Filename: yc-waterjet-g3080-dynamic-5axis-front-view.png

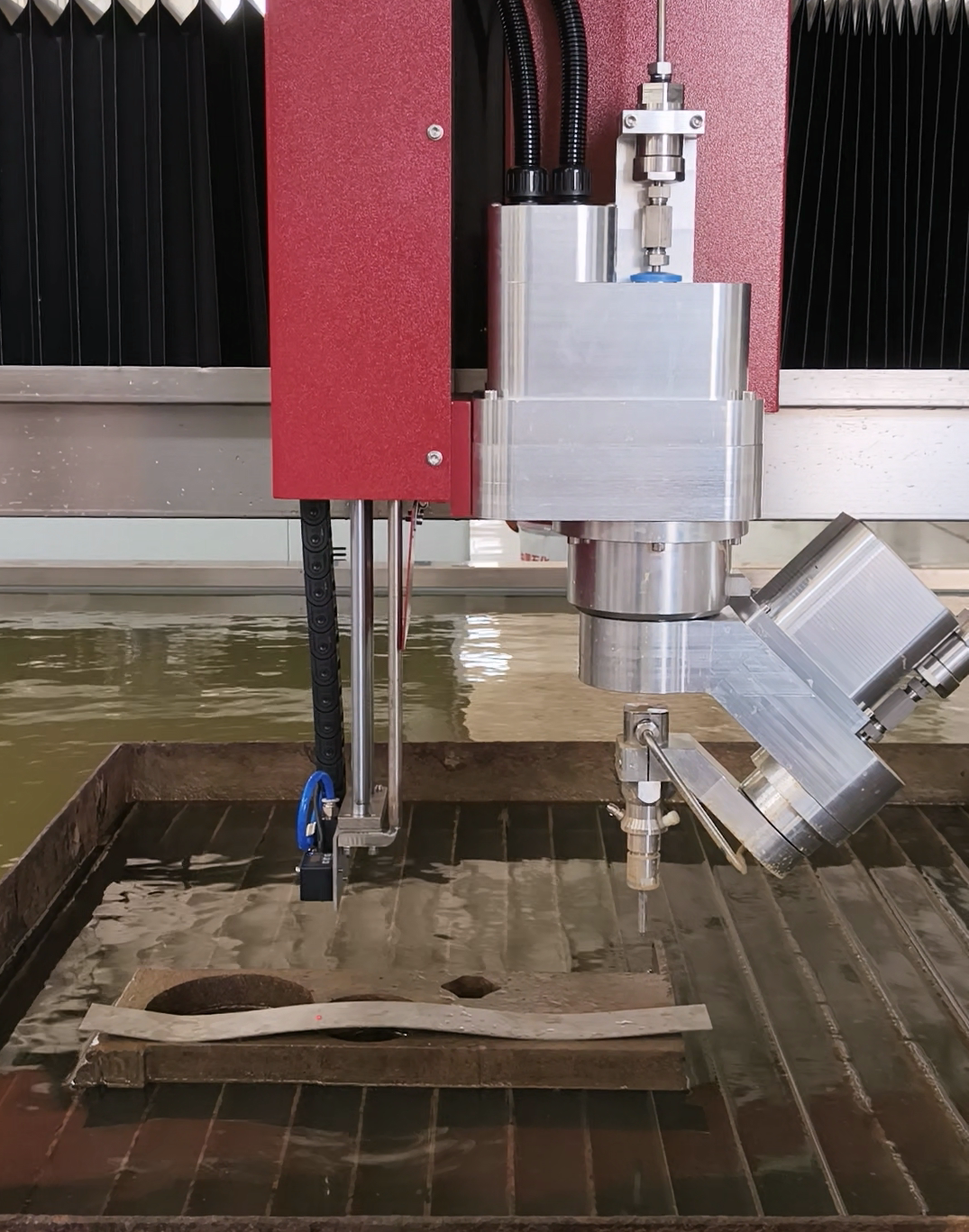

Filename: yc-waterjet-dynamic-5axis-cutting-head.png
